Envision Double-Hung Windows

Isolatied shot of an Envision Double Hung Window

Envision Series Double-Hung windows provide the beauty of hassle-free operation, low maintenance and traditional styling. Both sashes open and close with ease and tilt in for effortless cleaning. Give any home a distinctive look by combining these with picture windows and specialty shapes.

Performance

Telescoping welded sill detail improves performance and structural rigidity. Our high-performance sloped sills are made from a single extrusion, which makes them stronger and more durable. Multi-chambered extrusions and storm interlock improve energy efficiency and structural performance

Easy Operation

Constant force balances provides extra lift assistance for easy operation, while our tilt latches allow both sashes to tilt in for easy cleaning from the inside.

Strong Seal
The integrated full-perimeter nailing fin and triple weather seal ensure a weathertight seal to reduce drafts and protect against leaks.

Continuous Head & Sill
Envision Double-Hung windows have a continuous head and sill on multiple wide units up to eight feet wide. This provides clean sight lines, and ensures there’s more visible glass to enjoy.

Full Screens
Open both the top and bottom sashes to allow for ventilation, while still keeping bugs out with full screens, which come standard on Envision Double Hung windows.

Ultimate Energy Efficiency
Want to achieve the ultimate in energy savings? Our Envision Double-Hung windows are available with triple-pane glass, which will qualify for the new Energy Star® “Most Efficient” product category.

  • Custom Sizing
  • Grids Between Glass
  • Vinyl Colors, Painted Colors, and Laminates
  • Receiver Loose or Applied
  • Custom Sizing
  • Upgraded Screens
  • Replacement Option (Retro)
  • Breather Tubes
  • Upgraded Screens
  • Custom Vent Widths
  • Extension Jambs (loose or applied)
  • Limits
    • Window Opening Control Device (WOCD)
    • 4" Opening Limit

Extention Jambs

Laminate Jambs

White laminate Jambs sample swatch
almond laminate Jambs sample swatch
Clay laminate Jambs sample swatch
Black laminate laminate Jambs sample swatch
Light oak laminate laminate Jambs sample swatch
Dark Oak laminate laminate Jambs sample swatch

White

Almond

Clay

Black Laminate

Light Oak Laminate

Dark Oak Laminate

Wood Veneer. Other species available upon request.

Oak laminate Jambs sample swatch
Pine laminate Jambs sample swatch
Knotty Alder laminate Jambs sample swatch
Maple laminate Jambs sample swatch
Poplar laminate Jambs sample swatch
Primed laminate Jambs sample swatch

Oak

Pine

Knotty Alder

Maple

Poplar

Primed

Receiver Loose or Applied

  • 3/4"
  • 5/8"

Fiberglass Standard Screen with Roll Formed Aluminum Frame

Screen Mesh Options:

Fiberglass – Standard

Fiberglass – Clearscene

Aluminum Mesh

For additional information and videos on our screens click here.

  • Flat Grids
    • Colonial
    • 1" Wide Horizontal
    • Prairie
    • Heritage
    • Valance
    • 1" Wide Vertical
  • Contoured Grids
    • Colonial
    • Prairie
    • Heritage

Features

  • 3-1/4" Thick Main Frame
  • Multi-Chambered Extrusion
  • Fusion-Welded Main Frame & Sash
  • 3/4" Dual Pane Warm-Edge Insulated Glass
  • LoE and Argon
  • Tilt-In Sash for Easy Cleaning
  • Slope Sill
  • Color Coordinated Hardware
  • Extruded Lift Rail
  • Full-Perimeter Integrated Nail Fin
  • Fiber Mesh Screens
  • Triple Weather Stripping
  • Storm Interlock
  • Meets Energy Star® 6.0 Standards
Envision Double-Hung Windows featured in a cozy dining room
Envision Double-Hung with Applied Jambs and Black Laminate
Envision Double-Hung with Applied Jambs and Black Laminate
Color Options

Interior Colors

White Swatch
Almond Swatch
Clay Swatch
Black Laminate Swatch
Light Oak Laminate Swatch
Dark Oak Laminate Swatch

White

Almond

Clay

Black Laminate

Light Oak Laminate

Dark Oak Laminate

Exterior Colors

White Swatch
Almond Swatch
Clay Swatch
Black Laminate Swatch

White

Almond

Clay

Black Laminate

Painted Exterior Color Options

Almond Swatch
Clay Swatch
Terratone Swatch
Bronze Swatch
Black Swatch
Cocoa Swatch

Almond

Clay

Terratone

Bronze

Black

Cocoa

Brick Red Swatch
Hunter Green Swatch
Swatch book icon

Brick Red

Hunter Green

Custom Color*

*Custom Painted Exterior Colors Available Upon Request

Interior Color Options

Interior Colors

White Swatch
Almond Swatch
Clay Swatch
Black Laminate Swatch

White

Almond

Clay

Black Laminate

Light Woodgrain Laminate Swatch

Light Woodgrain Laminate

Dark Woodgrain Laminate Swatch

Dark Woodgrain Laminate

Exterior Color Options

Exterior Colors

White Swatch
Almond Swatch
Clay Swatch
Black laminate

White

Almond

Clay

Black Laminate

Painted Exterior Color Options

Almond Swatch
Clay Swatch
Terratone Swatch
Bronze Swatch
Black Swatch

Almond

Clay

Terratone

Bronze

Black

Cocoa Swatch
Brick Red Swatch
Hunter Green Swatch
Swatch Book Icon

Cocoa

Brick Red

Hunter Green

Custom Color*

*Custom Painted Exterior Colors Available Upon Request

Grid Color Options

9/16" Flat Grids

White finishing example
Almond finishing example
Clay finishing example
Black finishing example

White

Almond

Clay

Black

White and dark woodgrain finishing example
White and LWG finishing example
Clay and dark woodgrain finishing example
Clay and light woodgrain finishing example

White/Dark Woodgrain

White/LWG

Clay/Dark Woodgrain

Clay/Light Woodgrain

Contoured Grides

White contoured finishing example
Almond contoured finishing example
Clay contoured finishing example
Black contoured finishing example

White

Almond

Clay

Black

Black and white contoured finishing example

Black/White

1" Flat

Flat White finishing example
Flat almond finishing example
Flat Clay finishing example
Flat Black finishing example

White

Almond

Clay

Black

Extension Jamb Color Options

Extention Jambs

Laminate Jambs

White laminate Jambs sample swatch
almond laminate Jambs sample swatch
Clay laminate Jambs sample swatch
Black laminate laminate Jambs sample swatch
Light oak laminate laminate Jambs sample swatch
Dark Oak laminate laminate Jambs sample swatch

White

Almond

Clay

Black Laminate

Light Oak Laminate

Dark Oak Laminate

Wood Veneer. Other species available upon request.

Oak laminate Jambs sample swatch
Pine laminate Jambs sample swatch
Knotty Alder laminate Jambs sample swatch
Maple laminate Jambs sample swatch
Poplar laminate Jambs sample swatch
Primed laminate Jambs sample swatch

Oak

Pine

Knotty Alder

Maple

Poplar

Primed

  • Clear
  • LoE 272
  • LoE 366
  • Bronze Tint
  • Gray Tint
  • Solar Cool Bronze Tint
  • STC (Sound Transmittance Glass) Acoustic Glass
  • High Elevation Breather Tubes

Glass Tint Options

Gray tint on white background
Gray tint sample glass pane held outdoors in the sun

Gray Tint

Bronze tint example on white background
Bronze tint sample glass pane held outdoors in the sun
Solar cool breeze tint sample glass pane held outdoors in the sun
Solar cool breeze tint held at the sid to see reflective properties

Bronze Tint

Solar Cool Bronze Tint

Glass Pattern Options

Obscure glass pattern option
Obscure glass pattern option held outside
Rain glass glass pattern option
Rain glass glass pattern option held outside

Obscure Glass

Rain Glass

  • STC Rated Acoustic Glass Option

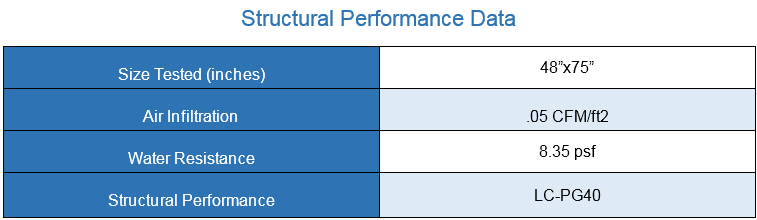

Envision Double-Hung Structural Performance

Size Tested (Inches)

48" x 75"

Air Inflitration

.05 CFM/ft2

Water Resistance

8.35 PSF

Structural Performance

LC-PG30

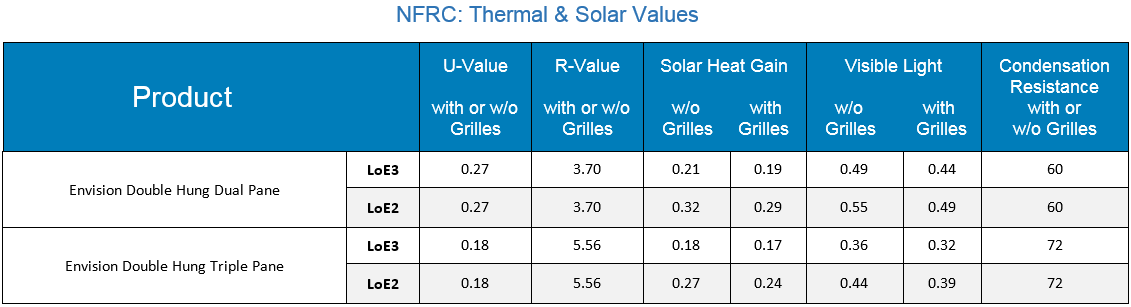

Product

Glass

U-Value

R-Value

Solar Heat Gain

Visible Light

Condensation Resistance

With or w/o Grids

With or w/o Grids

w/o Grids

With Grids

w/o Grids

With Grids

With or w/o Grids

Envision Double-Hung Dual Pane

LoE3

0.27

3.70

0.21

0.19

0.49

0.44

60

LoE2

0.27

3.70

0.32

0.29

0.55

0.49

60

Envision Double-Hung Tripple Pane

LoE3

0.18

5.56

0.18

0.17

0.36

0.32

72

LoE2

0.18

5.56

0.27

0.24

0.44

0.39

72

Profile Measurements

Overall Frame Size

3 1/4"

Nail Fin Outboard

1 1/8"

Nail Fin Inboard

2 1/16"

Nail Fin Width

1 1/18"

Add-On Jamb Dimentions

Wall Thickness

6 9/16"

6 13/16"

Jamb Size

4 1/2"

4 3/4"
